Cable Connectors

Hermetic connectors with terminals (one-pole and multi-pole) are used to connect wires (e.g. damaged wire systems). They are applied for round wires.

Types of products

Cat. No.	Type / symbol	Voltage	Cross-section mm²	Insulation length	Protection degree	Clamping range	Max. load current A	A	B	L	EAN barcode
39.2	SP 2,5	400 V	1- 2,5	5mm	IP 67	10 - 14	20	27	30	126	5905548286624
39.6	SP 6	400 V	2,5 -6	7mm	IP 67	13 - 18	35	32	36	125	5905548286631
39.35	SP 35	400 V	35-25-16		IP 67	6,4 - 12		27	30	126	5905548286648

TYPES OF PRODUCTS

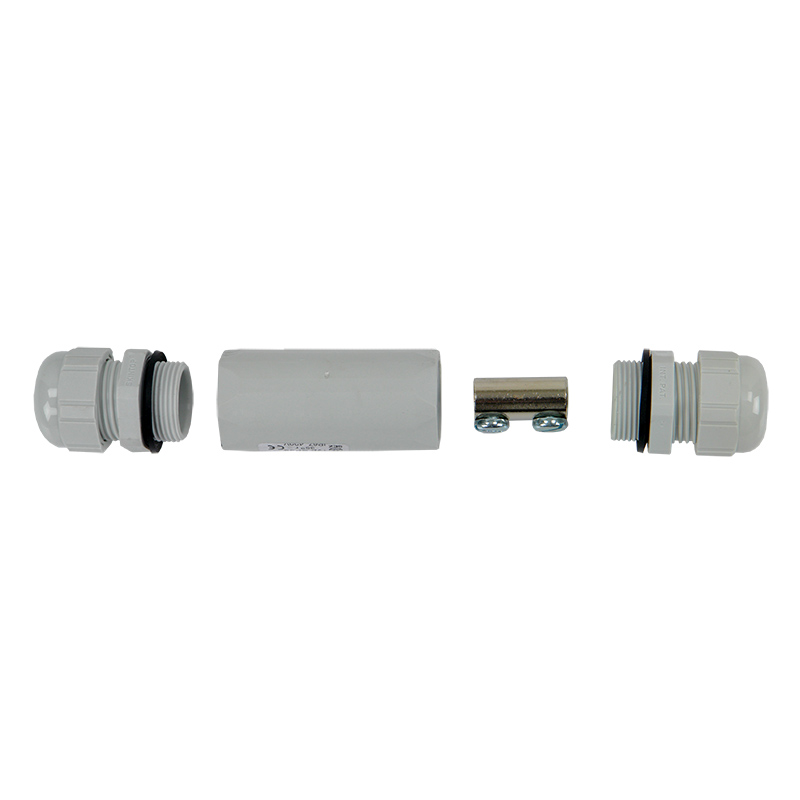

Cable connector SP 2,5
	Catalogue number	Symbol
	39.2	SP 2,5
	EAN
	5905548286624

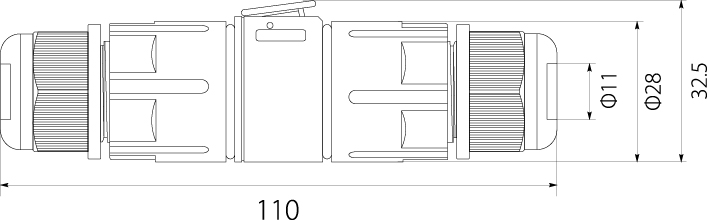

Cable Connector SZPNL 293 3x1.5, 250V, 16A, IP68
	Catalogue number	Symbol
	39.293	SZPNL 293
	EAN
	5905548285191

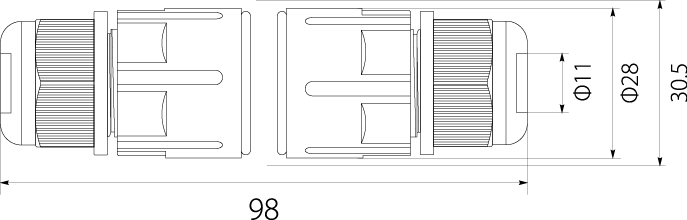

Cable Connector SZPN 293X 3x1.5, 250V, 16A, IP68
	Catalogue number	Symbol
	39.2931	SZPN 293X
	EAN
	5905548285351

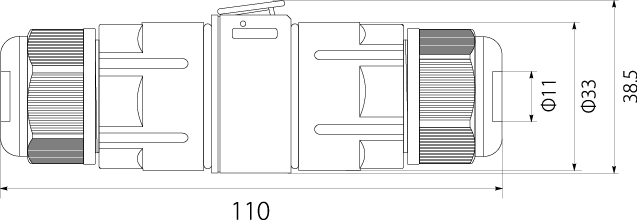

Cable Connector SZPNL 295 5x1.5, 250V, 16A, IP68
	Catalogue number	Symbol
	39.295	SZPNL 295
	EAN
	5905548285344

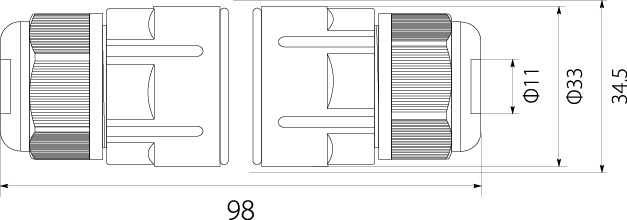

Cable Connector SZPN 295X 5x1.5, 250V, 16A, IP68
	Catalogue number	Symbol
	39.2951	SZPN 295X
	EAN
	5905548285368

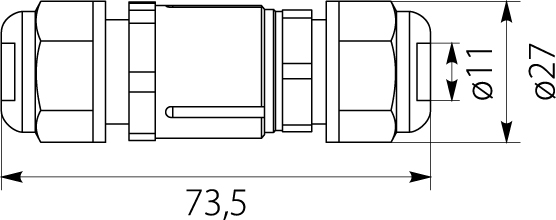

Złączka kablowa SPN 315 (3x1.5), 250V AC, 16A, IP68
	Catalogue number	Symbol
	39.315	SPN 315
	EAN
	5901769012363

Złączka kablowa SPN 325 (3x2.5), 250V AC, 16A, IP68
	Catalogue number	Symbol
	39.325	SPN 325
	EAN
	5901769012370

Złączka kablowa SPNT 325 (3x2.5) trójnik, 250V AC, 16A, IP68
	Catalogue number	Symbol
	39.326	SPNT 325
	EAN
	5901769012387
